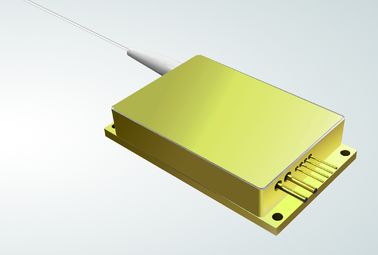

808nm 55W High Power Diode Laser

808nm 55W High Power Diode Laser

MOQ: 1 Piece/Pieces
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K808DA5RN-55.00W
Minimum Order Quantity:
1 Piece/Pieces
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

808nm diode laser

,

mini laser module

Product Description

Features:

808nm wavelength

55W output power

400μm fiber core diameter

0.22 N.A.



Applications:

Solid-state laser pumping

Medical use

Material processing







Specifications(25℃) Symbol Unit K808DA5RN-55.00W
Minimum Typical Maximum

Optical Data





CW-Output Power Po W 40 - -
Center Wavelength λc nm 805 - 811
Threshold current Ith A - 1.8
Operating current Iop A - - 11
Operating voltage Vop V - - 14
Reverse Voltage Vre V - 17.5 -
Slope Efficiency η W/A - 7.4 -
Electrical-to-Optical Efficiency PE % - 48 -
Spectral width(FWHM) δλ nm - 5 -
Back reflection wavelength Range λ nm 1040 - 1200
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Fiber Data Core diameter Dcore µm   400
Cladding diameter Dclad um - 440 -
Buffer diameter Dbuf µm - 730 -
Numerical Aperture N.A - - 0.22 -
Fiber length lc m 1.4 1.5 1.6
Connector - - - SMA905 -
Fiber jacket - -   3.0mmPVC
Fiber Bend Radius - mm - 140 -
Thermistor Wavelength Range Rt (K Ω)/β(25℃) - 10±3%/3477 -
Others ESD Vesd V   - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
