Optical Character
Power	1000W
Wavelength	1080土10
Output Fiber Core Diameter	20/50μm
Cable Length	12m or Customized
Beam Delivery	QBH or Customized
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability (25℃)	<3%(2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Overall size and weights
weights	<30Kg
Outline Feature	153 mm482mm378mm
Electronic Character
voltage	Single Phase, 220土20v,AC,PE,50/6OHz
Power Consumption	3.0 kW
Control lnterface	RS232
Water Cooling Parameters
Minimum Water Cooling Capacity	2KW
Cooling Tubes Size (External)	25 ℃ (Laser Module),30 ℃(QBH)
Cooling Tubes Size (External)	Φ12mm
Cooling Water Flux	>10L/min
QBH Cooling Water Flux	1.5-2.0L/min

Tags:

high power laser diode module,

high power laser diodes

20000w 1080nm Ytterbium Fibre Laser Combined Beam

Contact Now

Combined Beam Ytterbium Doped 12000w Fiber Laser 1080nm

Contact Now

Lightning Series High Power Cw Laser 1080nm 3000w

Contact Now

1080nm 6000w Cw Fiber Lasers Lighting Series High Power

Contact Now

6000w Ytterbium Doped CW Fiber Lasers 1080nm

Contact Now

3000w Bwt High Power Cw Laser Welding Application

Contact Now

PRODUCTS DETAILS

Products

Diode Laser Module

Fiber Coupled Diode Laser

808nm Diode Laser Module

High Power Diode Lasers

Red Diode Laser Module

Pump Laser Diode

Wavelength Stabilized Laser Diode

Medical Diode Laser

Diode Laser System

Diode Laser Parts

Blue Diode Laser

CW Fiber Lasers

Picosecond IR Laser

Thunder Series Fiber Laser

1000w Ytterbium Doped Fiber Laser 1080nm Wavelength

MOQ:	1 Piece/Pieces
Delivery Period:	4-8weeks
Payment Method:	T/T
Supply Capacity:	100,000/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BWT

Certification

ISO9001

Wavelength:

1080nm

Power:

1000W

Fiber Bundle Diameter:

600µm

Cable Length:

10m Or Customized

Applications:

Cladding , Welding , Laser Additive Reproduction

Power Stability (25℃):

<3%(2h)

Minimum Order Quantity:

1 Piece/Pieces

Delivery Time:

4-8weeks

Payment Terms:

T/T

Supply Ability:

100,000/year

Highlight

bwt ytterbium doped fiber laser

1000w ytterbium doped fiber laser

ytterbium doped 1000w fiber laser

Product Description

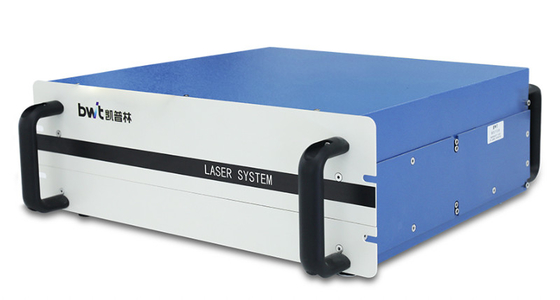

1000W Ytterbium-doped fiber laser

Features:

Low cost
Maintenance free operation
Excellent power stability

Convenient control interface
Modulation frequency up to 5kHz
High wall-plug efficiency

Applications:

Cladding

Welding

Laser additive reproduction

Optical Character
Power	1000W
Wavelength	1080土10
Output Fiber Core Diameter	20/50μm
Cable Length	12m or Customized
Beam Delivery	QBH or Customized
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability (25℃)	<3%(2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Overall size and weights
weights	<30Kg
Outline Feature	153 mm482mm378mm
Electronic Character
voltage	Single Phase, 220土20v,AC,PE,50/6OHz
Power Consumption	3.0 kW
Control lnterface	RS232
Water Cooling Parameters
Minimum Water Cooling Capacity	2KW
Cooling Tubes Size (External)	25 ℃ (Laser Module),30 ℃(QBH)
Cooling Tubes Size (External)	Φ12mm
Cooling Water Flux	>10L/min
QBH Cooling Water Flux	1.5-2.0L/min
