| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |
808nm wavelength
30W output power
400μm fiber core diameter
0.22 N.A.
Applications:
Solid-state laser pumping
Medical Use
Material processing

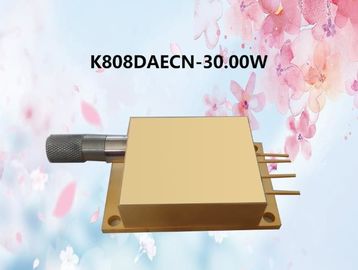

| Specifications(25℃) | Symbol | Unit | K808DAECN-30.00W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 30 | - | - |
| Center wavelength | λc | nm | 808±3 | |||
| Spectral Width(FWHM) | △λ | nm | - | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 1 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | - | 45 | - |
| Threshold current | Ith | A | - | 9 | 10 | |
| Operating current | Iop | A | - | 1.8 | - | |
| Operating voltage | Vop | V | - | - | 8 | |
| Slope Efficiency | η | W/A | - | 3 | - | |
| Fiber Data | Core diameter | Dcore | µm | - | 400 | - |
| Numeric aperture | NA | - | - | 0.22 | - | |
| Fiber termination | - | - | - | SMA905 | - | |
| Feedback Isolation | - | Rt | (K Ω)/β(25℃) | 10±3%/3477 | ||
| Others | ESD | Vesd | V | - | - | 500 |
| Storage Temperature | Tstg | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
|
|
