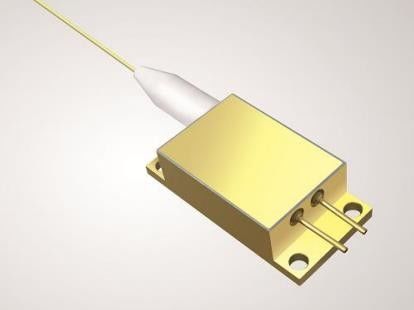

Fiber Laser Pumping -8W 793nm

Fiber Laser Pumping -8W 793nm

MOQ: 1 Piece/Pieces
Delivery Period: 3-6weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K793DA2RN-8.000W
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
3-6weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

laser diodes high power

,

high power laser diode module

Product Description

Features:

793nm wavelength 

8W output power 

105µm fiber core diameter 

0.22N.A. 

1900nm-2100nm feedback protection


Applications:

Fiber laser pumping 

Solid state laser pumping



Specifications(25℃) Symbol Unit K793DA2RN-8.000W
Minimum Typical Maximum

Optical Data





CW-Output Power Po W 8 - -
Threshold current Ith A - 1
Operating current Iop A - - 5.5
Operating voltage Vop V - - 4
Reverse Voltage Vre V - 5 -
Slope Efficiency η W/A - 2 -
Electrical-to-Optical Efficiency PE % - 45 -
Center wavelength ʎc nm 790 - 796
Spectral width(FWHM) δλ nm   3
Back reflection wavelength Range λ nm 1900 - 2100
Back reflection isolation △λ dB - 30 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Light within 0.15NA - % - 90 -
Fiber Data Buffer diameter Dbuf µm - 250 -
Cladding diameter Dclad µm - 125 -
Core diameter Dcore µm - 105 -
Numeric aperture NA - - 0.22 -
Fiber length lf m - 1 -
Fiber Bend Radius - mm 60 - -
Others ESD Vesd V   - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
