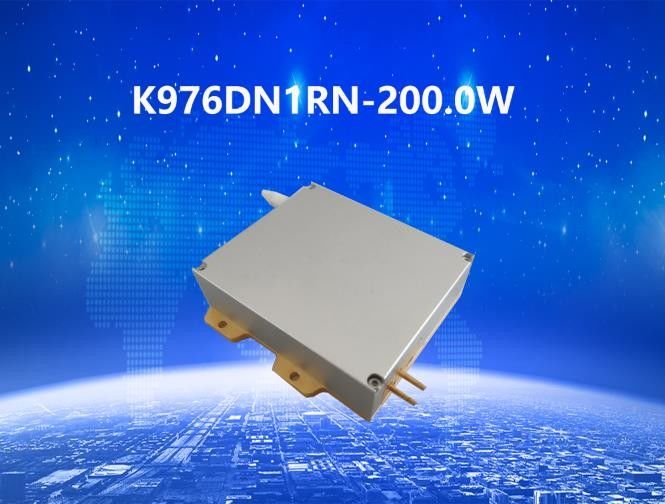

135µm Pump Laser Diode

135µm Pump Laser Diode

MOQ: 1 Piece/Pieces
Delivery Period: 4-8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K976DN1RN-200.0W
Product Name:
Fiber Laser Pumping
Output Power:
200W
Wavelength:
976nm
Fiber Bundle Diameter:
135µm
Numerical Aperture:
0.22N.A
Application:
Fiber Laser Pumping,Material Processing
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4-8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
Highlight:

high power laser diodes

,

laser diode modules

Product Description

Features:

  • 976nm wavelength
  • 200W output power
  • 135µm fiber core diameter
  • 0.22N.A.
  • 1040nm-1200nm feedback protection



Applications:

  • Fiber laser pumping



Specifications(25℃)



Symbol



Unit



K976DN1RN-200.0W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 200 - -
Center Wavelength λc nm 976±3nm
Spectral Width (FWHM) △λ nm 6
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Electrical Data Electrical-to-Optical Efficiency PE % - 48 -
Threshold current lth A - 0.9 -
Operating current lop A - 13 14
Operating voltage Vop V - 31.5 35
Slope Efficiency η W/A - 17.5 -

Fiber Data



Core diameter Dcore μm - 135 -
Cladding diameter Dclad μm - 155 -
Buffer diameter Dbuf μm - 320 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m 1.9 2 -
Fiber Loose Tubing Diameter - μm 1mm PTFE /180cm
Minimum Bending Radius - mm 88 - -
Fiber termination - - - FPT -
Feedback Isolation Back reflection wavelength λ nm 1040-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
