20000w Welding Cutting Thunder Fiber Laser For Metal

MOQ:	1 Piece/Pieces
Delivery Period:	4-8weeks
Payment Method:	T/T
Supply Capacity:	100,000/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BWT

Certification

ISO9001

Model Number

CWX-20000

Features:

Two Operation Modes: CW And Modulation

Power:

20000W

Wavelength:

1080nm±10

Applications:

Cutting, Welding, Drilling, Additive Manufacturing

Fiber Core Diameter:

100 Or 150μm

Name:

Thunder Series Fiber Laser Model: CWX-20000

Minimum Order Quantity:

1 Piece/Pieces

Delivery Time:

4-8weeks

Payment Terms:

T/T

Supply Ability:

100,000/year

Highlight

20000w thunder fiber laser

welding cutting metal thunder fiber laser

20000w fiber laser metal cutting machine

Product Description

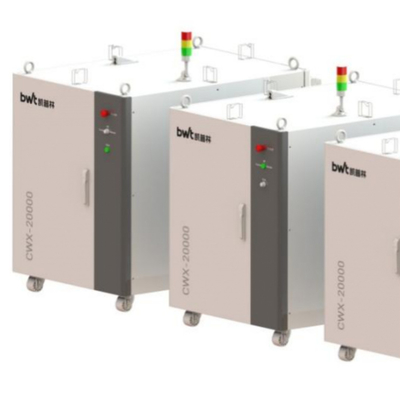

Thunder Series Fiber Laser

Model: CWX-20000

BWT Thunder series fiber lasers have excellent beam quality, which makes them perfect choices for precision processing.

Features:

Good beam quality
High electro-optical conversion efficiency
Excellent power stability
Two operation modes: CW and Modulation
Excellent system reliability
Max modulation frequency up to 5kHz
Easy-to-use control interface
Cost effective and maintenance free

Applications:

Surface treatment
Welding
Drilling
Cutting
Additive manufacturing
Sheet metal processing

Optical Character
Power	12000W
Wavelength	1080±10nm
Output Fiber Core Diameter	100 or 150μm
Cable Length	25m or Customized
Output Cable Connector	QF or QF-D
Aiming Beam	Red
Operation Mode	CW or modulation
Polarization	Random
Power Stability (25℃)	＜±1.5% (2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Overall size and weights
Weights	< 400 kg
Physical Size (W×D×H)	950 mm×1300 mm×1050 mm
Electronic Character
Power Supply	Three Phase, 380±20 V, AC, PE, 50/60 Hz
Power Consumption	63.0 kW
Control lnterface	RS232/AD
Water Cooling Parameters
Minimum Water Cooling Capacity	45.0 kW
Temperature Settings	25℃(Laser Module),30℃(QF,QF-D)
Cooling Tubes Size	I.D. Φ38 mm
Cooling Water Flow Rate (Laser Module)	>180L/min
Cooling Water Flow Rate (QF)	3.0L/min
