| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

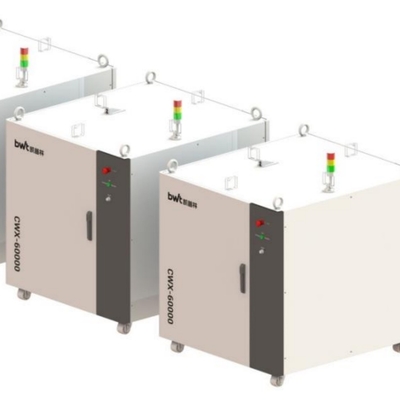

Thunder Series Fiber Laser
Model: CWX-60000
The lasers can process various types of metal, including aluminum-based and nickel-based alloys, titanium alloys and alumina ceramics.
Features:
Applications:
| Optical Character | |
| Power | 60000W |
| Wavelength | 1080±10nm |
| Output Fiber Core Diameter | 150μm |
| Cable Length | 25m or Customized |
|
Output Cable Connector |
QF or QF-D |
|
Aiming Beam |
Red |
| Operation Mode |
CW or modulation |
| Polarization | Random |
| Power Stability (25℃) |
＜±1.5% (2h) |
| Power Adjustment Scope | 10%-100% |
| Max Modulation Frequency | 5kHz |
| Overall size and weights | |
| Weights |
< 400 kg |
|
Physical Size (W×D×H) |
1175 mm×1300mm× 1235 mm |
| Electronic Character | |
|
Power Supply |
Three Phase, 380±20 V, AC, PE, 50/60 Hz |
| Power Consumption |
200.0 kW |
| Control lnterface | RS232/AD |
| Water Cooling Parameters | |
| Minimum Water Cooling Capacity |
>140.0 kW |
|
Temperature Settings |
25℃(Laser Module),30℃(QF,QF-D) |
| Cooling Tubes Size |
I.D. Φ50 mm*2 |
|
Cooling Water Flow Rate (Laser Module) |
>540L/min |
|
Cooling Water Flow Rate (QF) |
6.0L/min |
