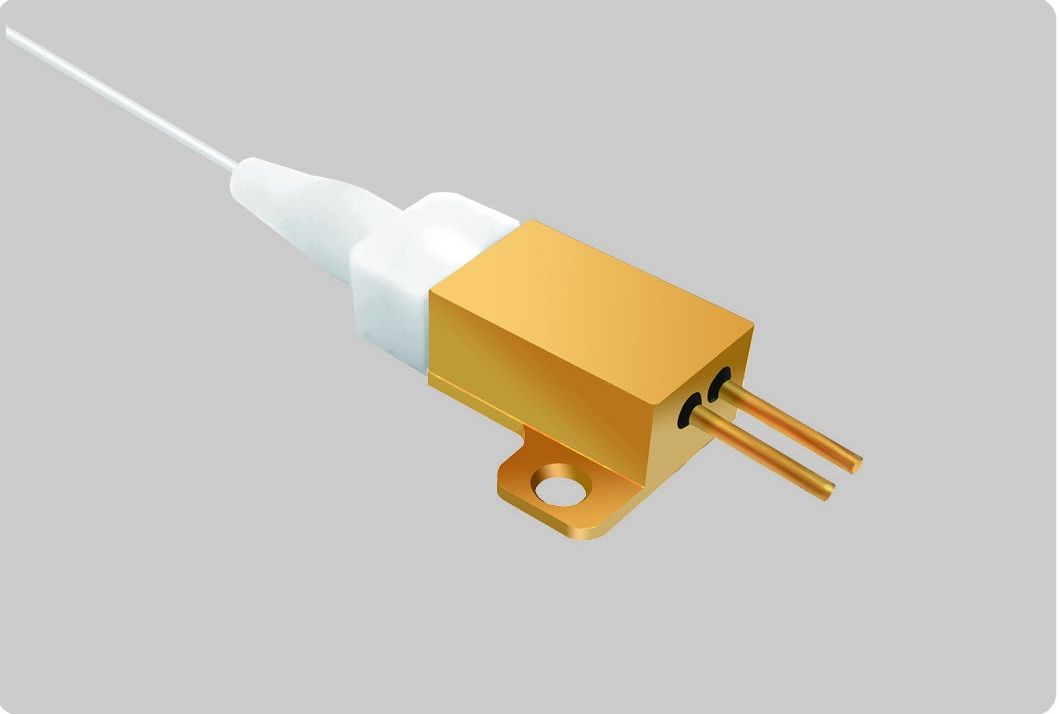

K940EB2RN 940nm 10W Fiber Coupled Laser Module

K940EB2RN 940nm 10W Fiber Coupled Laser Module

MOQ: 1 Piece/Pieces
Delivery Period: 4~8weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K940EB2RN-10.00W
Output Power:
10W
Wavelength:
940nm
Fiber Bundle Diameter:
105µm
Numerical Aperture:
0.22N.A
Application:
Laser Pumping
Laser Type:
Diode Laser
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
4~8weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

10W fiber coupled laser module

,

940nm fiber coupled laser module

,

K940EB2RN

Product Description

 Features:

940nm wavelength

10W output power

105µm fiber core diameter

0.22NA


 Applications:

      CATV

Fiber laser pumping



Specifications(25℃)



Symbol



Unit



K940EB2RN-10.00W

Minimum Typical Maximum
Optical Data CW-Output Power Po W 10 - -
Center Wavelength λc nm 940±5
Spectral Width (FWHM) △λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Spot ratio 0.15/0.22 NA % - 85 -
Electrical Data Electrical-to-Optical Efficiency PE %   50 -
Threshold current lth A - 0.8 -
Operating current lop A - - 12
Operating voltage Vop V - 1.6 1.8
Slope Efficiency η W/A - 1 -

Fiber Data



Core diameter Dcore μm - 105 -
Cladding diameter Dclad μm - 125 -
Buffer diameter Dbuf μm - 245 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC 15cm
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback Isolation Back reflection wavelength λ nm 1020-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -40 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 85
