| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |
Features:
Applications:
Medical use
|
Specifications(25℃)
|
Symbol
|
Unit
|

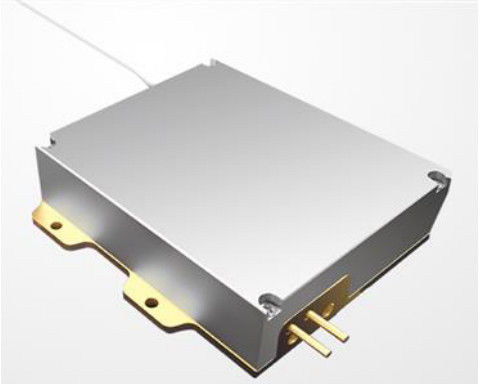

K808DN1RN-60.00W
|
|||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 60 | - | - |
| Center Wavelength | λc | nm | 808±3 | |||
| Spectral Width (FWHM) | △λ | nm | - | 6 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 0.6 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | - | 42 | - |
| Threshold current | lth | A | - | - | 5.5 | |
| Operating current | lop | A | - | 0.85 | - | |
| Operating voltage | Vop | V | - | 28.4 | 29 | |
| Slope Efficiency | η | W/A | - | 13 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 106.5 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
|
Fiber Loose Tubing Diameter
|
- |
mm |
0.9 | |||
| Numeric aperture | NA | - | - | 0.22 | - | |
| Fiber length | Lc | m | - | 2 | - | |
| Fiber Loose Tubing Diameter | - | mm | 0.9 | |||
| Minimum Bending Radius | - | mm | 50 | - | - | |
| Fiber termination | - | mm | - |
SMA905
|
- | |
| Feedback Isolation | Wavelength Range | λ | nm | 1040-1200 | ||
| Isolation | - | dB | - | 30 | - | |
|
Thermistor
|
- | Rt |
(K Ω)/β(25℃)
|
- |
10±3%/3477
|
- |
| Others | ESD | - | V | - | - | 500 |
| Storage temperature | - | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | TIs | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | - | % | 15 | - | 75 | |
|
|
