Ctp Wavelength 830/405nm V Groove Fiber Array Bwt

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: CTP-16/32/48/64/96/128
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
Wavelength: 830/405nm Fiber Center Interval: 125µm
Transmissivity: >909% Applications: Scientific Research , CTP
Feature: Long-term High Reliability ,Good Product Consistency Fiber Core Diameter: 50/60µm
High Light:

ctp v groove fiber array

,

830nm v groove fiber array


Product Description

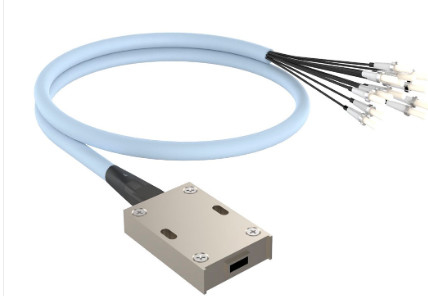

V-groove Fiber Array

Features:

  • Long-term high reliability
  • Good product consistency

Applications:

  • iming beam
  • Scientific research

Specifications(25℃)



Unit



CTP-16/32/48/64/96/128
Fiber Center Interval µm 125
vertical Precision of Fiber Position µm ±4
Transmissivity - >909%
Fiber Numbers - 16/32/48/64/96/128
Fiber Core Diameter µm 50/60
Fiber Cladding Diameter µm 125
Fiber Buffer Diameter µm 250
Fiber Jacket Diameter µm 900
Numerical Aperture - 0.14/0.22
Fiber Length(1) m 1.0
Fiber Connector - FC,ST,SMA-905
