| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

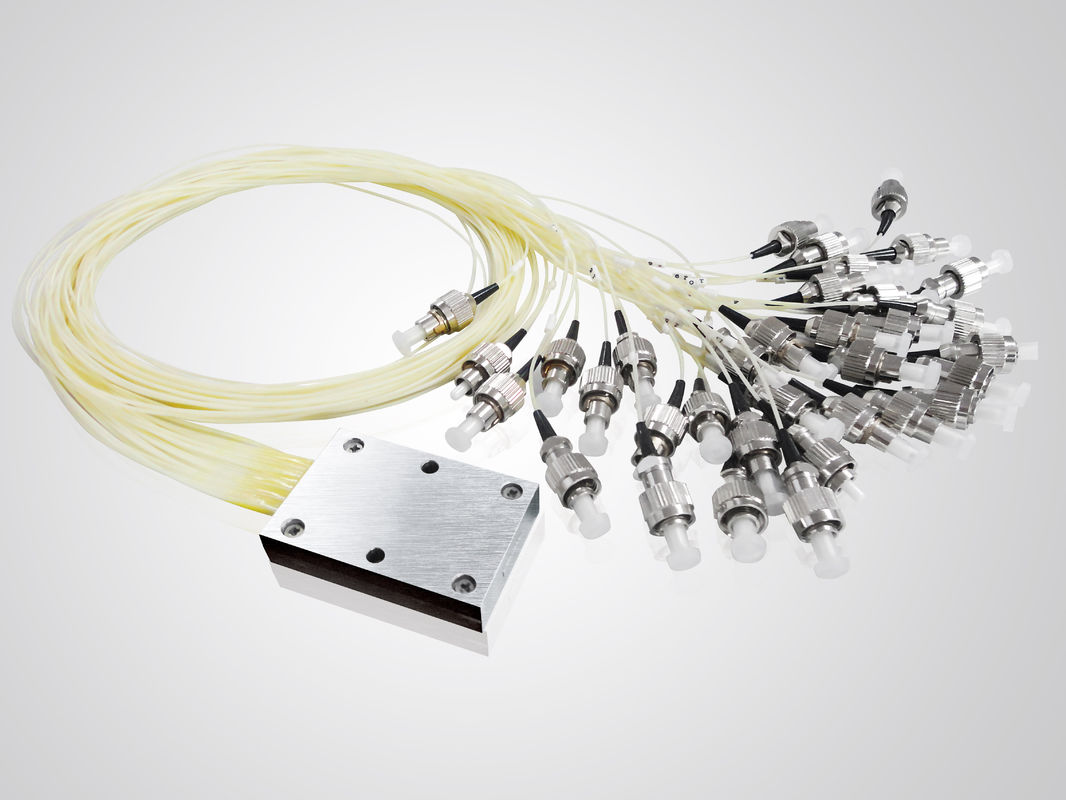

Customized V - groove Fiber Array KCTP-32 for Medical use, Printing, CTP
Applications of V-groove Fiber Array ACTP-32:
|
Specifications |
Unit |
ACTP-32 |
ACTP-16 |
ACTF-32 |
ACTF-16 |
|
Fiber Center Interval |
µm |
125 |
|||
|
Horizontal Precision of Fiber Position |
µm |
±2.5 |
|||
|
Vertical Precision of Fiber Position |
µm |
±4 |
|||
|
Transmissivity |
- |
>90% |
|||
|
Fiber Numbers |
- |
32 |
16 |
32 |
16 |
|
Fiber Core Diameter |
µm |
62.5 |
5 |
||
|
Fiber Cladding Diameter |
- |
125 |
|||
|
Fiber Buffer Diameter |
µm |
250 |
|||
|
Fiber Jacket Diameter |
µm |
900 |
|||
|
Numerical Aperture |
- |
0.22 |
0.11 |
||
|
Fiber Length* |
m |
1 |
|||
|
Fiber Connector |
- |
FC, ST, SMA-905 |
|||
* other fiber length available.
|
|
