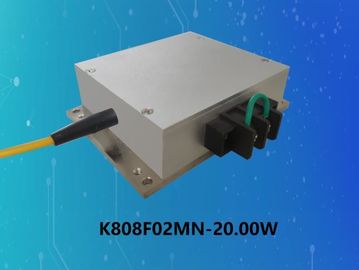

808nm 20W 400μm Fiber Bundled Diode Laser Module

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: K808F02MN-20.00W
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
High Light:

808nm diode laser

,

mini laser module


Product Description

Features:



  • 808nm wavelength
  • 20W output power
  • 400µm fiber bundle diameter
  • 0.22N.A.





Applications:



  • Laser pumping
  • Illumination
  • Medical use
  • Material processing
    Specifications(25℃) Symbol Unit K808F02MN-20.00W
    Minimum Typical Maximum

    Parameter





    CW-Output Power Po W 20 - -
    Center Wavelength λc nm 808±10
    Spectral width(FWHM) △​λ nm - 6 -
    Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
    Wavelength Shift with Current △​λ/△A nm/A - 1 -
    Threshold current Ith A - 0.8
    Operating current Iop A - - 5
    Operating voltage Vop V - - 12
    Slope Efficiency η W/A - 4.0 -
    Electrical-to-Optical Efficiency PE % - 40 -
    Fiber Data Core diameter Dcore µm - 400 -
    Cladding Diameter Dclad µm - 440 -
    Numerical Aperture N.A - - 0.22 -
    Fiber length lf m - 1.0 -
    Fiber Loose Tubing Diameter   mm 3mm Stainless steel
    Minimum Bending Radius - mm 180 - -
    Fiber termination - - - SMA905 -
    Others ESD Vesd V   - 500
    Storage Temperature Tstg -20 - 70
    Lead Soldering Temp Tls - - 260
    Lead Soldering Time t sec - - 10
    Operating case temperature Top 15 - 35
    Relative Humidity RH % 15 - 75
