| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | Topaz355-15 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Power: | 15W | Wavelength: | 355nm |
|---|---|---|---|
| Applications: | OLED Processing , FPC Processing , PCB Processing | Maximum Pulse Energe: | 18.8uJ@800kHz |
| Name: | 15W Picosecond UV Laser | Pulse Repetition Rate: | 50KHz |
| High Light: | fpc processing picosecond uv laser,15w picosecond fiber laser,355nm picosecond fiber laser |
||

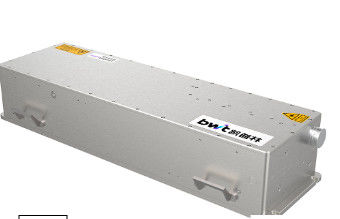

15W Picosecond UV Laser
Features:
Applicable even in some harsh circumstances; Reliability for 7*24 operation
excellent beam quality; consistent beam parameters along both x and y axis
Stable output power; Output window replaceable on-site
Narrow laser head width (27cm)
Max Energy:＞18.8μJ@800kHz
Power:＞15W@800kHz
Applications:
OLED processing
FPC processing
PCB processing
|
Parameters
|
Unit
|
Topaz355-15 | |||
| Minimum | Typical | Maximum | |||
| Optical Data | CW-Output Power | W | 15 | - | - |
| Center Wavelength | nm | 355 | |||
| Pulse Repetition Rate | KHz | 50 | - | 1000 | |
| pulse width | ps | - | - | 15 | |
| Average Power | W | 15W@800kHz | - | - | |
| Maximum Pulse Energe | μJ | 18.8uJ@800kHz | - | - | |
| Aouerage Powrer Stabitity | - | - | 2.0%o rms | ||
| Pulse-to-Pulse Instability | - | - | 3.0%o rms | ||
| Spatial Mode | - | TEMO0[M2<1.20] | |||
| Beam Roundness | - | 90% | |||
| Beam Divergence | mrad | 2.0mrad [Full Angle] | |||
| Polarization Direction | - | - | Vertical | - | |
| Polarization Ratio | - | 100:1 | - | - | |
| Electrical Data | Operation voltage | V | 110 | - | 260 |
|
Others Parameter |
warm-up Time | min | - | - | 20 |
| Ambient Temperature | ℃ | 15 | - | 30 | |
| Relative Humidity | - | 10% | - | 80% | |
| storage Temperature(2) | ℃ | -10 | - | 50 | |
| cooling Approach | - | - | Water-cooling | ||
