Stable output power and pulse energy
Compact Design
High Beam Quality
Pulse Width:<15ps
Max Energy:＞500μJ@100kHz at burst counts 4 >800 μJ customized
Power:＞50W@100kHz at burst counts 4

Applications:

Brittle material processing

Parameters		Unit	Topaz-1064-50
Parameters		Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	W	50	-	-
	Center Wavelength	nm	1064
	Pulse Repetition Rate	KHz	10	-	1000
	pulse width	ps	-	-	15
	Average Power	W	50W@100kHz at burst counts 4	-	-
	Maximum Pulse Energe	μJ	500μJ@100kHz at burst counts 4	-	-
	Aouerage Powrer Stabitity	-	-	-	2.0%o rms
	Pulse-to-Pulse Instability	-		-	3.0%o rms
	Spatial Mode	-		TEMO0[M²<1.40]
	Beam Roundness	-	90%
	Beam Divergence	mrad			2.0mrad [Full Angle]
	Polarization Direction	-	-	Horizontal	-
	Polarization Ratio	-	100:1	-	-
Electrical Data	Operation voltage	V	110	-	260
Others Parameter	warm-up Time	min	-	-	20
	Ambient Temperature	℃	15	-	30
	Relative Humidity	-	10%	-	80%
	storage Temperature(2)	℃	-10	-	50
	cooling Approach	-	-	Water-cooling

Tags:

laser diodes high power,

medical diode laser,

50w picosecond ir laser

1030nm 20w 50μJ Ir Femtosecond Fiber Laser / Femtosecond Pulsed Laser

Contact Now

10khz 10watt Picosecond Ir Laser Processing Brittle Material

Contact Now

20w 20μJ Ir Femtosecond Ultrafast Lasers 1030nm OLED Processing

Contact Now

Fpc Processing 15w Picosecond Fiber Laser , 355nm Picosecond Uv Laser

Contact Now

355nm 30watt Picosecond Uv Laser OLED Processing

Contact Now

Durable 30w Picosecond Ir Laser 1064 Nm Brand Bwt

Contact Now

Bwt 50w Picosecond Ir Laser 1064nm ISO9001 Passed

Contact Now

75w 1064nm Picosecond Ir Laser Brittle Material Processing

Contact Now

Ir Femtosecond Laser High Power And Narrow Pulse Width

Contact Now

PRODUCTS DETAILS

Products

Diode Laser Module

Fiber Coupled Diode Laser

808nm Diode Laser Module

High Power Diode Lasers

Red Diode Laser Module

Pump Laser Diode

Wavelength Stabilized Laser Diode

Medical Diode Laser

Diode Laser System

Diode Laser Parts

Blue Diode Laser

CW Fiber Lasers

Picosecond IR Laser

Thunder Series Fiber Laser

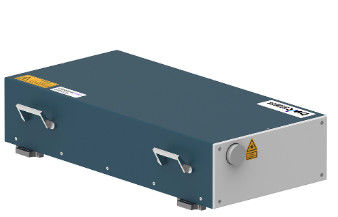

Bwt 50w Picosecond Ir Laser 1064nm ISO9001 Passed

MOQ:	1 Piece/Pieces
Delivery Period:	4-8weeks
Payment Method:	T/T
Supply Capacity:	100,000/year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BWT

Certification

ISO9001

Model Number

Topaz-1064-50

Product Name:

50W Picosecond IR Laser

Power:

50W

Wavelength:

1064nm,

Applications:

Brittle Material Processing

Maximum Pulse Energe:

500μJ@100kHz At Burst Counts 4

Pulse Repetition Rate:

10KHz

Minimum Order Quantity:

1 Piece/Pieces

Delivery Time:

4-8weeks

Payment Terms:

T/T

Supply Ability:

100,000/year

Highlight

50w picosecond ir laser

bwt picosecond ir laser

picosecond ir laser 1064nm

Product Description

75W Picosecond IR Laser

Features:

Stable output power and pulse energy
Compact Design
High Beam Quality
Pulse Width:<15ps
Max Energy:＞500μJ@100kHz at burst counts 4 >800 μJ customized
Power:＞50W@100kHz at burst counts 4

Applications:

Brittle material processing

Parameters		Unit	Topaz-1064-50
Parameters		Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	W	50	-	-
	Center Wavelength	nm	1064
	Pulse Repetition Rate	KHz	10	-	1000
	pulse width	ps	-	-	15
	Average Power	W	50W@100kHz at burst counts 4	-	-
	Maximum Pulse Energe	μJ	500μJ@100kHz at burst counts 4	-	-
	Aouerage Powrer Stabitity	-	-	-	2.0%o rms
	Pulse-to-Pulse Instability	-		-	3.0%o rms
	Spatial Mode	-		TEMO0[M²<1.40]
	Beam Roundness	-	90%
	Beam Divergence	mrad			2.0mrad [Full Angle]
	Polarization Direction	-	-	Horizontal	-
	Polarization Ratio	-	100:1	-	-
Electrical Data	Operation voltage	V	110	-	260
Others Parameter	warm-up Time	min	-	-	20
	Ambient Temperature	℃	15	-	30
	Relative Humidity	-	10%	-	80%
	storage Temperature(2)	℃	-10	-	50
	cooling Approach	-	-	Water-cooling
