| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | K808F02MN-10.00W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |

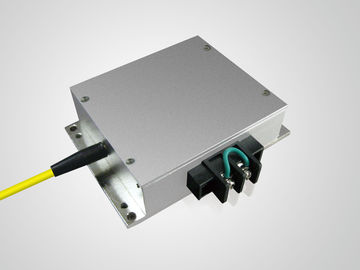

| Product Name: | Medical Diode Laser | Output Power: | 10W |
|---|---|---|---|
| Wavelength: | 808nm | Fiber Bundle Diameter: | 375µm |
| Numerical Aperture: | 0.22N.A | Application: | Laser Pumping,Illumination, Medical Use,Material Processing |
| High Light: | 808nm diode laser,high power laser module |
||
Features:
Applications:
| Specifications(25℃) | Symbol | Unit | K808F02MN-10.00W | |||
| Minimum | Typical | Maximum | ||||
|
Parameter
|
CW-Output Power | Po | W | 10 | - | - |
| Center Wavelength | λc | nm | 789 | 808 | 818 | |
| Threshold current | Ith | A | - | 0.8 | ||
| Operating current | Iop | A | - | 2.7 | 3.0 | |
| Operating voltage | Vop | V | - | 9 | 10 | |
| Reverse Voltage | Vre | V | - | - | 12.5 | |
| Slope Efficiency | η | W/A | - | 5.0 | - | |
| Electrical-to-Optical Efficiency | PE | % | - | 40 | - | |
| Spectral width(FWHM) | δλ | nm | - | 5 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Fiber Data | Core diameter | Dcore | µm | - | 375 | - |
| Numerical Aperture | N.A | NA | - | 0.22 | - | |
| Fiber length | lc | m | - | 1.0 | - | |
| Others | ESD | Vesd | V | 500 | - | |
| Storage Temperature | Tstg | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
