| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |

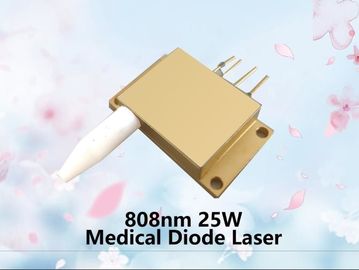

| Model Number: | K808DAHFN-25.00W |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| High Light: | 808nm diode laser,mini laser module |
||
|---|---|---|---|
Features:
25W output power
808nm wavelength
Standard fiber coupling for 400µm/0.22NA
Applications:
Solid-state laser pumping
Medical use
Material processing
|
Specifications(25℃)
|
Symbol
|
Unit
|
K808DAHRN-25.00W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 25 | - | - |
| Center Wavelength | λc | nm | 808±3 | |||
| Spectral Width (FWHM) | △λ | nm | - | 3 | - | |
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.3 | - | |
| Wavelength Shift with Current | △λ/△A | nm/A | - | 1 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 48 | - | |
| Threshold current | lth | A | - | 1.8 | - | |
| Operating current | lop | A | - | 10 | 11 | |
| Operating voltage | Vop | V | - | - | 6 | |
| Slope Efficiency | η | W/A | - | 3 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 400 | - |
| Cladding diameter | Dclad | μm | - | 440 | - | |
| Buffer diameter | Dbuf | μm | 730 | |||
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1.5 | - | |
| Fiber Loose Tubing Diameter | - | mm | 3.0mmPVC | |||
| Minimum Bending Radius | - | mm | 88 | - | - | |
| Fiber termination | - | - | - | SMA905 | - | |
| Thermistor | - | Rt | (K Ω)/β(25℃) | 10±3%/3477 | ||
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 15 | - | 35 | |
| Relative Humidity | RH | % | 15 | - | 75 | |
