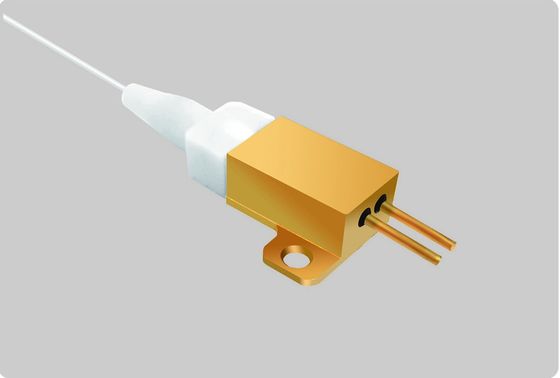

Fiber Coupled 808nm Medical Diode Laser Module K808DB2FN-8.000W

Fiber Coupled 808nm Medical Diode Laser Module K808DB2FN-8.000W

MOQ: 1 Piece/Pieces
Delivery Period: 3-6weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
K808DB2FN-8.000W
Minimum Order Quantity:
1 Piece/Pieces
Delivery Time:
3-6weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

mini laser module

,

high power laser module

Product Description

Features:

808nm wavelength

8W output power

200μm/ 0.22NA fiber



Applications:

     Solid-state laser pumping 

     Medical use 

     Material processing



Specifications(25℃)



Symbol



Unit



K808DB2FN-8.000W



Minimum Typical Maximum
Optical Data CW-Output Power Po W 8 - -
Center Wavelength λc nm 808±3
Spectral Width (FWHM) △λ nm - 3 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A A/℃   1
Electrical Data Electrical-to-Optical Efficiency PE %   46 -
Threshold current lth A - 1.9 -
Operating current lop A - - 11
Operating voltage Vop V - 1.8 2
Slope Efficiency η W/A - 1 -

Fiber Data



Core diameter Dcore μm - 200 -
Cladding diameter Dclad μm - 220 -
Buffer diameter Dbuf μm - 320 -
Numeric aperture NA NA - 0.22 -
Fiber length Lf m - 1 -
Fiber Loose Tubing Diameter - μm 0.9mm PVC
Minimum Bending Radius - mm 88 - -
Fiber termination - - - SMA905 -
Feedback Isolation Back reflection wavelength λ nm 1020-1200
Back reflection isolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst -40 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 85
