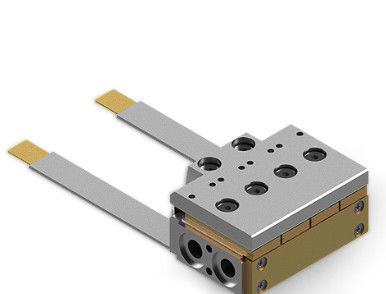

60W Micro Channel Cooled High Power Diode Lasers Horizontal Stack

60W Micro Channel Cooled High Power Diode Lasers Horizontal Stack

MOQ: 1 Piece/Pieces
Standard Packaging: Coaxial
Delivery Period: 3-6weeks
Payment Method: T/T
Supply Capacity: 100,000/year
Detail Information
Place of Origin
China
Brand Name
BWT
Certification
ISO9001
Model Number
E2Y-808.3-240C- -1*4 , E2Y-808.3-2000Q- 1*4 , E2Y- 940.3-2000Q- 1*4
Wavelength:
808nm
Power:
60W
Product Name:
Micro Channel Cooled Horizontal Stack
Main Features:
Low Smile ,Long Life Time
Application:
Fiber Laser Pump Source , Physiotherapy , Scientific Research
Tyoe:
Bar Stacked Diode Laser
Minimum Order Quantity:
1 Piece/Pieces
Packaging Details:
Coaxial
Delivery Time:
3-6weeks
Payment Terms:
T/T
Supply Ability:
100,000/year
High Light:

60w high power diode lasers

,

horizontal stack high power diode lasers

,

micro channel cooled laser diode bar

Product Description

Micro Channel Cooled Horizontal Stack



Features:



Low Smile

Long lifetime



Applications:



Fiber laser pump source

          Physiotherapy
          Scientific Research



Specifications(25℃)



Unit



E2Y-808.3-240C-

-1*4

E2Y-808.3-2000Q-

1*4

E2Y-

940.3-2000Q-

1*4

Optical Data Working Mode - CW QCW QCW
Output Power Per Bar W/bar 600 500 500
Center Wavelength nm 808±3 808±3 940±3
Bar Number pcs 1-4 1-4 1-4
Band Width (FWHM) nm <5 <5 <5
Fast axis divergence(95% power) dog 60-70° 60-70° 60-70°
Fast Axis Divergence with FAC (90% power) mrad ≦8mard ≦8mard ≦8mard
Slow axis divergence(95% power) dog 8-12° 8-12° 8-12°
Electrical Data Electrical-to-Optical Efficiency % ≧50 ≧50 ≧50
Threshold current A ≦20 ≦40 ≦40
Operating current A ≦70 ≦480 ≦480
Operating voltage V ≦2 ≦2 ≦2
Frequency HZ / 200-1000 200-1000
Duty cycle % / ≦10% ≦10%
Slope Efficiency W/A ≧4.4 ≧4.4 ≧4.4
Others Cooling Water Temparatuare 25 25 25
Storage Temperature 0-55 0-55 0-55
Pressure bar <5 <5 <5
Flow Rate L/min/bar <0.33 <0.33 <0.33
Cooling water Specification   Delionized weater 2.5士0.5uS/crm.pH-value 5.5-8,filter≤Sum
