| MOQ: | 1 Piece/Pieces |
| Delivery Period: | 4-8weeks |
| Payment Method: | T/T |
| Supply Capacity: | 100,000/year |

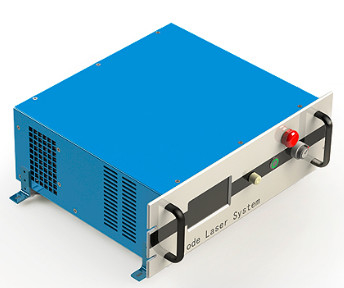

976nm Diode Laser System 300W with LCD for Laser additive reproduction
Features:
Applications:
|
Specifications(25℃)
|
Unit
|
DS3-51512-LD | |
| Optical Data | CW-Output Power | W | 300 |
| Center Wavelength | nm | 976/915±10 | |
| Spectral Width (FWHM) | nm | 6 | |
| Wavelength Shift with Temperature | nm/℃ | 0.3 | |
| Output power instability(25℃) | % | ±3(5 hours) | |
| Power Range | % | 10~100 | |
| Electrical Data | Power supply | V | 100~200(50-60Hz) |
| Power consumption at nom. Power, approx | W | <800 | |
| Drive mode | - | Constant current | |
| Emission mode | - | CW or Modulated 1 Hz in 20kHz | |
| Control mode | - | Touch screen, RS232, I/O | |
| Modulation frequency | - | 1~20kHz | |
| Modulation Pulse Width | µs | 16µs~950ms(Pulse)/16µs~999ms(Single Pulse) | |
| Modulation Rise/Fall Time (Min. Value) | µs | ≤10 | |
| Current | A | <12 | |
|
Fiber Data
|
Core diameter | μm | 200 |
| Numeric aperture | - | 0.22 | |
| Fiber length | m | 2 | |
| Fiber termination | - | SMA905 | |
| Aiming beam Data | Center wavelength | nm | 635±10 |
| CW Output Power | mW | 2/Custumized | |
| Mechanical Parameters | Dimensions (L×W×H/mm) | - | M Size340× 438× 145 |
| Weight | Kg | <15 | |
| Others | Refrigerating method | - | Water-cooling |
| Storage temperature | ℃ | 5~50 | |
| Temperature Ambient in Operation | ℃ | 15~30 | |
| Cooling requirement | - | Internal fan, At least 10 cm space outside fan | |
| Relative Humidity | % | 5~80 | |
| Safety class | - | 4(EN 60825-01) | |
|
|
