| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | BFL-CW2000-EV |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Wavelength: | 1080 | Power: | 2000W |
|---|---|---|---|
| Fiber Bundle Diameter: | 400/600µm | Cable Length: | 10m Or Customized |
| Applications: | Cladding , Welding , Laser Additive Reproduction | Power Stability (25℃): | <3%(2h) |
| High Light: | 1080nm high power fiber laser,2000watt high power fiber laser,high power 2000w fiber laser |
||

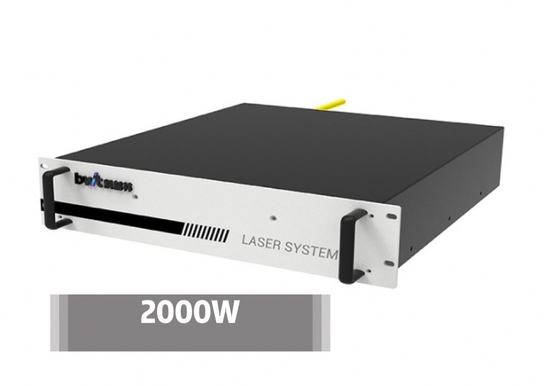

2000W High Power Fiber laser
Features:
Low cost
Maintenance free operation
Excellent power stability
Convenient control interface
Modulation frequency up to 5kHz
High wall-plug efficiency
Applications:
Cladding
Welding
Laser additive reproduction
| Optical Character | |
| Power | 2000W |
| Wavelength | 1080土10 |
| Output Fiber Core Diameter | 400/600μm |
| Cable Length | 10m or Customized |
| Beam Delivery | QBH |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Stability (25℃) | <3%(2h) |
| Power Adjustment Scope | 10%-100% |
| Max Modulation Frequency | 5kHz |
| Overall size and weights | |
| weights | <35Kg |
| Outline Feature | 153 mm*482mm*378mm |
| Electronic Character | |
| voltage |
Single Phase, 220土20v,AC,PE,50/6OHz |
| Power Consumption | 2.4 kW |
| Control lnterface | RS232 |
| Water Cooling Parameters | |
| Minimum Water Cooling Capacity | 1.8KW |
| Cooling Tubes Size (External) | 25 ℃ (Laser Module),30 ℃(QBH) |
| Cooling Tubes Size (External) | Φ12mm |
| Cooling Water Flux | >15L/min |
| QBH Cooling Water Flux | 1.5-2.0L/min |
