| Place of Origin: | China |
|---|---|
| Brand Name: | BWT |
| Certification: | ISO9001 |
| Model Number: | DS3-51512-LD |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Delivery Time: | 4 Weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100,000/year |
| Application: | Laser Additive Reproduction | Power: | 200W |
|---|---|---|---|
| Wavelength: | 915/976nm | Fiber Terminal: | QBH |
| Fiber Core Diameter: | 105/200μm | Name: | DS3 200W Fiber Coupled 976nm Diode Laser System |
| High Light: | 200w diode laser system,976nm diode laser system,fiber coupled diode system |
||

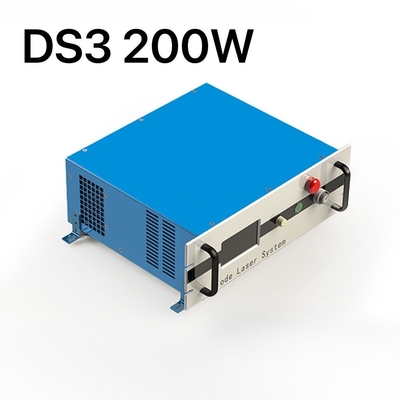

DS3 200W Fiber Coupled 976nm Diode Laser System
Features:
Applications:
|
Specifications(25℃)
|
Unit
|
DS3-51512-LD | |
| Optical Data | CW-Output Power | W | 200 |
| Center Wavelength | nm | 976/915 | |
| Spectral Width (FWHM) | nm | ±10 | |
| Wavelength Shift with Temperature | nm/℃ | ≤6 | |
| Output power instability(25℃) | % | ±3(5hours) | |
| Power Range | % | 10~100 | |
| Electrical Data | Power supply | V | 100~200(50-60Hz) |
| Power consumption at nom. Power, approx | W | <600 | |
| Drive mode | - | Constant current | |
| Emission mode | - | CW or Modulated 1 Hz in 20kHz | |
| Control mode | - | Touch screen, RS232, I/O | |
| Modulation frequency | - | 1~20kHz | |
| Modulation Pulse Width | µs | 20µs~950ms(Pulse)/20µs~999ms(Single Pulse) | |
| Modulation Rise/Fall Time (Min. Value) | µs | ≤10 | |
| Operation temperature | ℃ | 20~30 | |
| Current | A | <12 | |
|
Fiber Data
|
Core diameter | μm | 105/200 |
| Numeric aperture | - | 0.22 | |
| Fiber length | m | 2/Customized | |
| Fiber termination | - | SMA905/Customized | |
| Aiming beam Data | Center wavelength | nm | 635±10 |
| CW Output Power | mW | 2 | |
| Mechanical Parameters | Dimensions (L×W×H/mm) | - |
S size260*360*125 M size340*438*145 |
| Weight | Kg | <15 | |
| Others | Refrigerating method | - | Air cooling/Water-cooling |
| Storage temperature | ℃ | 5~50 | |
| Temperature Ambient in Operation | ℃ | 15~30 | |
| Cooling requirement | - | Internal fan, At least 10 cm space outside fan | |
| Relative Humidity | % | 5~80 | |
| Safety class | - | 4(EN 60825-01) | |
