Iso Approved Ds3 300w Diode Laser System Fiber Coupled

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: DS3-51512-LD
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
Application: Laser Additive Reproduction Power: 300W
Wavelength: 915nm/976nm Fiber Terminal: 105/200μm
Name: DS3 300W Fiber Coupled Diode Laser System
High Light:

300w diode laser system

,

diode laser system fiber coupled

,

300w fiber coupled laser system


Product Description

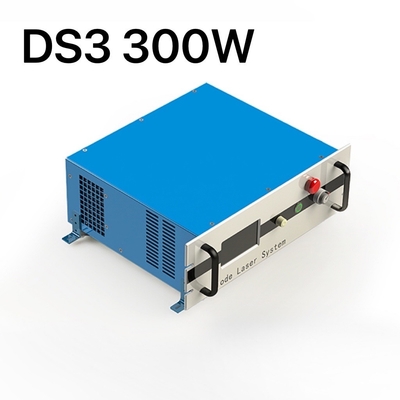

DS3 300W Fiber Coupled Diode Laser System



Features:


      Wavelength:976nm/915nm

      Output power:300W

      Fiber core diameter:105/200μm

      Optical fiber numerical: aperture0.22NA

      Multiple optional cabinet size


Applications:



   Laser additive reproduction





Specifications(25℃)



Unit



DS3-51512-LD
Optical Data CW-Output Power W 300
Center Wavelength nm 976/915±10
Spectral Width (FWHM) nm ≤6
Wavelength Shift with Temperature nm/℃ 0.3
Output power instability(25℃) % ±3(5hours)
Power Range % 10~100
Electrical Data Power supply V 100~240(50-60Hz)
Power consumption at nom. Power, approx W <800
Drive mode - Constant current
Emission mode - CW or Modulated 1 Hz in 20kHz
Control mode - Touch screen, RS232, I/O
Modulation frequency - 1~20kHz
Modulation Pulse Width µs 20µs~950ms(Pulse)/20µs~999ms(Single Pulse)
Modulation Rise/Fall Time (Min. Value) µs ≤10
Current A <12

Fiber Data



Core diameter μm 200
Numeric aperture - 0.22
Fiber length m 2/Customized
Fiber termination - SMA905/Customized
Aiming beam Data Center wavelength nm 635±10
CW Output Power mW 2
Mechanical Parameters Dimensions (L×W×H/mm) -

M size340*438*145

Weight Kg <15
Others Refrigerating method - Water-cooling
Storage temperature 5~50
Temperature Ambient in Operation 15~30
Cooling requirement - Internal fan, At least 10 cm space outside fan
Relative Humidity % 5~80
Safety class - 4(EN 60825-01)
