9xxnm Fiber Coupled Diode Laser System; DS3-51522-LD

Basic Information
Place of Origin: China
Brand Name: BWT
Certification: ISO9001
Model Number: DS3-51522-LD
Minimum Order Quantity: 1 Piece/Pieces
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 100,000/year
Detail Information
High Light:

50W diode laser system


advanced laser diode systems

Product Description


  • 9xxnm wavelength
  • 1W~400W output power
  • 105/135/200/400μm core diameter
  • 0.22NA
  • Multiple optional cabinet sizes


  • Plastic welding
  • 3D Printing
  • Soldering





Optical Data CW-Output Power W 1W~400W
Center Wavelength nm 9XX
Spectral Width (FWHM) nm ±10/Customized
Wavelength Shift with Temperature nm/℃ ≤3
Output power instability(25℃) % ±3(5 hours)
Power Range % 10~100
Electrical Data Power supply V 100~240(50-60Hz)
Power consumption at nom. Power, approx W <1200
Drive mode - Constant current
Emission mode - CW or Modulated 1 Hz in 20kHz
Control mode - Touch screen, RS232, I/O
Modulation frequency - 1~20K (DC>0.01%)
Modulation Pulse Width µs 20µs~950ms(Pulse)/20µs~999ms(Single Pulse)
Modulation Rise/Fall Time (Min. Value) µs ≤10
Operation temperature 20~30
Current A <16

Fiber Data


Core diameter μm 105/135/200/400
Numeric aperture - 0.22
Fiber length m 2/Customized
Fiber termination - SMA905/Customized
Aiming beam Data Center wavelength nm 635±10
CW Output Power mW 2

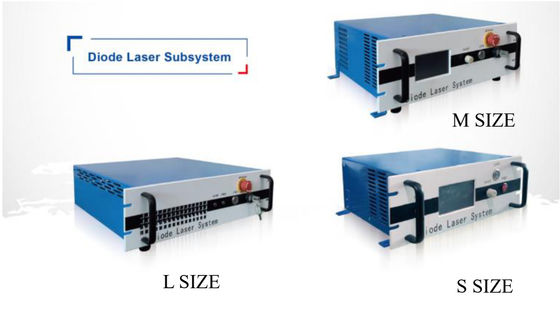

Mechanical Parameters Dimensions (L×W×H/mm) -

S size 260*360*125

M size 340*438*145

L size 430*482*130

Weight Kg <15
Others Refrigerating method - Air cooling/Water-cooling
Storage temperature 5~50
Temperature Ambient in Operation 15~30
Cooling requirement -

Air cooling: Internal fan, At least 10 cm space outside fan

Water cooling: temperature 20 - 25

Quick coupling: 2* Φ 12 water inlet and outlet interface

Circulating water pressure 0.25MPa

Circulating water flow 7L / min

Relative Humidity % 5~80
Safety class - 4(EN 60825-01)
